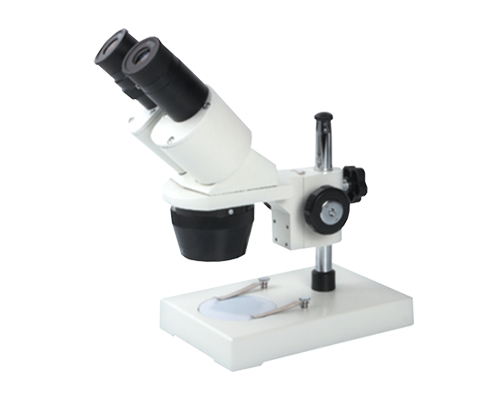

CM502-006 Microscope
NAME:Microscope
MODEL:CM502-006
MOQ:5
Magnification：0.7Xto4.5Xmatching eyepiece and auxiliary lens, continuous variable times(Magnification can be extended to 14 X to 180X,optional)0.7X-4.5X：Basic
Objective：Continuous change times objective 0.7X to 4.5X times than 6.3,1 to ensure the image planepyrobitumen0.7X-4.5X：Basic
Observe the head：Tilt 45°,360°rotation, pd54-76mm,blilateral diopter adjustment (plus or minus 5), binary or ternary, spectral than 20% / 80%45°：Basic
Eyepiece：10×20mm,wide field of vision, wide angle, high eyespots, provide convenient to wear glasses of the observer 10×20mm：Basic
Optional eyepiece：10x/20mm (with micrometer) 20×15×15mm：Basic
Working distance：0.5X/177mm, 2X / 26mm/100mm (range) equipped with auxiliary lens can be extended to 26mm-287mm：Basic
Light：12v15w and halogen lamp, 110v voltage , american plug or european plug：no light
Focusing：Focusing handwheel tightness is adjustable, lift range 50mm：Basic
Photographic camera interface：Cooperarte with special interface, can meet ordinary camera, digital camera, analog CCD, digital
CCD：Optional
