CM601-001 HOLE TYPE SHADOWLESS OPERATION
NAME: HOLE TYPE SHADOWLESS OPERATION
MODEL: CM601-001 CM601-001.I (AC/DC) CM601-001.III
PACKING SIZE (mm³): CM601-001 855×655×390
CM601-001.III 850×650×450
CM601-001.I(AC/DC) 850×650×450
GW(kg):CM601-001 26.5
CM601-001.III 37
CM601-001.I(AC/DC) 45
MOQ:1
CM601-001 hole type shadowless surgical lamp is suitable for general small and medium-sized operating room lighting.
CM601-001·III type, CM601-001·I type [AC/DC] cold-light vertical five-hole surgical shadowless lamp is suitable for the lighting of generally small and medium-sized operations and can be moved with brakes.
CM601-001.I type AC and DC lamp can be used for surgical lighting without power supply
|
Technical Parameter |
Model No: |
|
CM601-001 CM601-001·III CM601-001(AC/DC) |
|
|
Illumination at 1m(lux) |
80000 |
|
Color temperature(K) |
4000±500 |
|
Color rendering index（Ra） |
100≥Ra≥85 |
|
Depth of light beam(cm) |
≥500 |
|
The value of total irradiance |
＜6mW/m2lx |
|
Total irradiance(Temperature rise on the |
≤600W/m2 |
|
head of patient under surgical operation≤2℃） |
|
|
Power supply |
220±10% 50Hz |
|
Rated voltage of bulb |
24V |
|
Rated power of bulb |
125W |
|
Input power(VA) |
150 |
CM601-001 Cool Light Shadowless Lamp With Five-Reflectors
|
No. |
Description |
Quantity |
|
1 |
Lamp base plate |
1 |
|
2 |
Balance box |
1 |
|
3 |
Lamp body |
1 |
|
4 |
Quality certificate |
1 |
|
5 |
Fuse tubeφ5×20 1.5RF1 |
2 |
|
6 |
Instruction manual |
1 |
|
7 |
Spare bulbs |
5 |
CM601-001.I(AC/DC) Vertical Five-reflector Shadowless
|
No. |
Description |
Quantity |
|
1 |
Lamp seat |
1 |
|
2 |
Lower column |
1 |
|
3 |
Upper column |
1 |
|
4 |
Balance cabinet |
1 |
|
5 |
Lamp holder |
1 |
|
6 |
Handle |
1 |
|
7 |
Emergent power cabinet |
1 |
|
8 |
Bulbs standby |
5 |
|
9 |
Fuse |
2 |
|
10 |
Instruction Manual |
1 copy |
|
11 |
Warranty card |
1 copy |

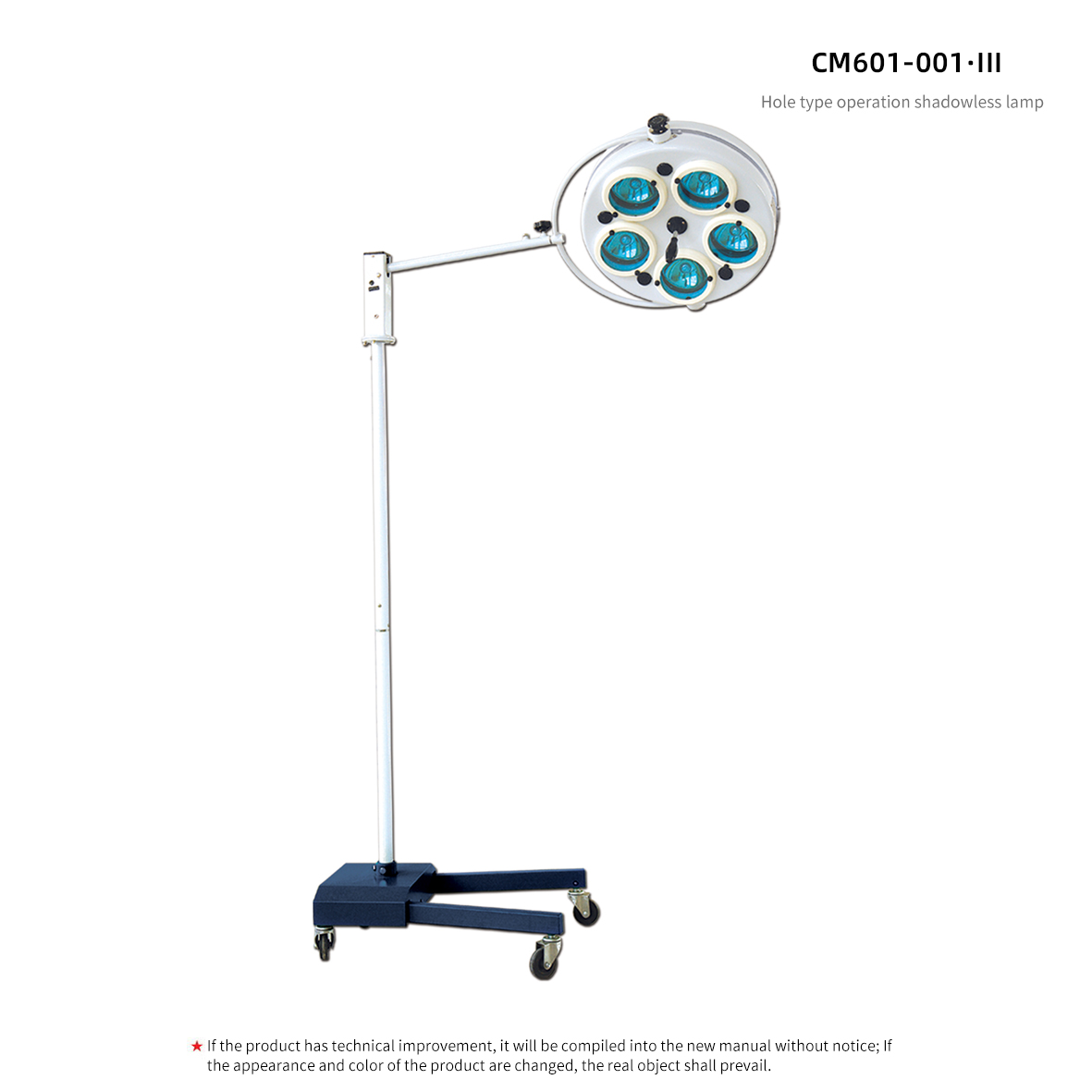

CM601-001.III Cool Light Vertical, Five-Reflector Shadowless Operating Lamp
|
No. |
Description |
Quantity |
|
1 |
Lamp base |
1 |
|
2 |
Vertical tube lower part |
1 |
|
3 |
Vertical tube upper part |
1 |
|
4 |
Balance box |
1 |
|
5 |
Lamp body |
1 |
|
6 |
Handle |
1 |
|
7 |
Fuse tubeφ5×20 1.5A |
2 |
|
8 |
Quality certificate |
1 |
|
9 |
Instruction manual |
1 |
|
10 |
Spare bulbs |
5 |
