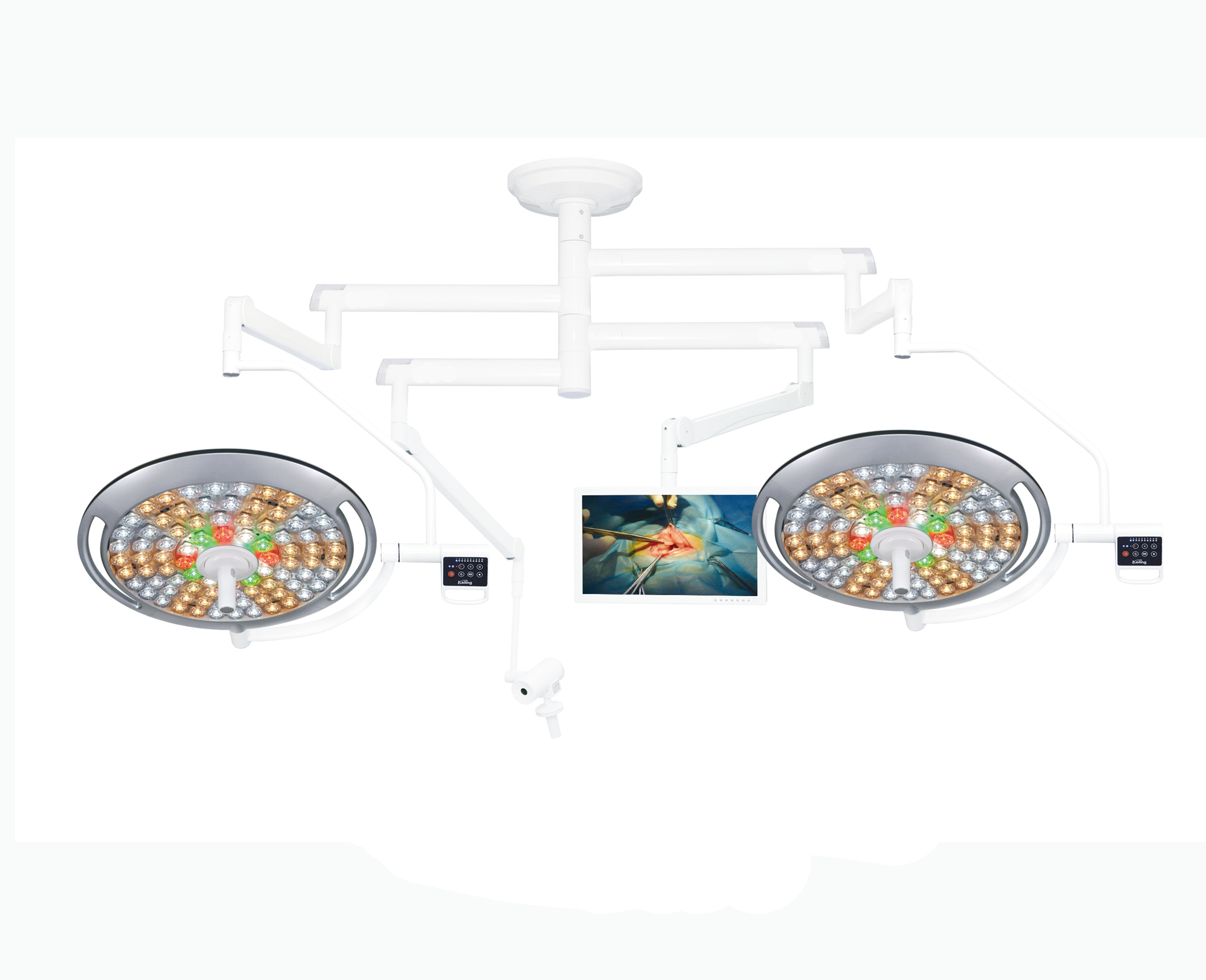

CM601-002 LED SHADOWLESS OPERATION LAMP
NAME: LED SHADOWLESS OPERATION LAMP
MODEL: CM601-002
PACKING SIZE (mm³):1195×915×400 975×975×500
GW(kg): 66.5 45
MOQ:1

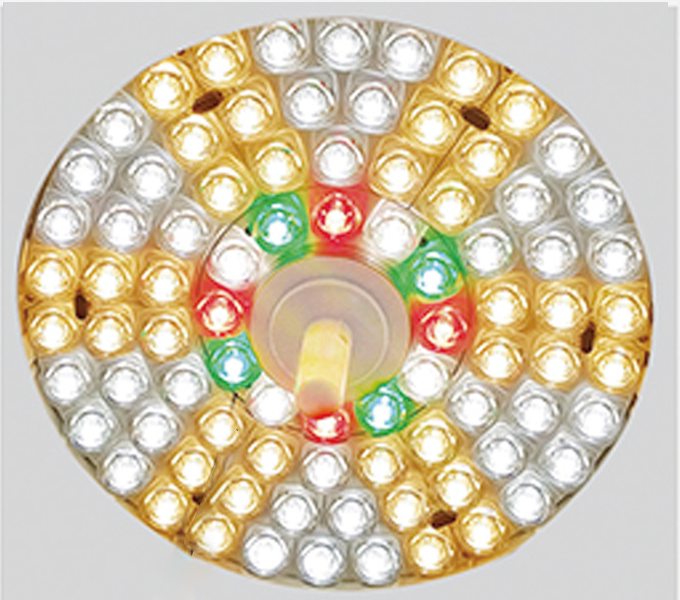

CM601-002 surgical shadowless lamp is suitable for the needs of various surgical occasions. It is an ideal surgical photo for modern operating rooms and clean operating rooms using imported LED cold light sources.
The nano-layer heat sink creates an ideal heat dissipation effect.
Intelligent touch control screen.
Removable handle cover for easy cleaning and disinfection.
Titanium alloy boom, no welding, to ensure that each angle is 90° without drift.
The spring arm is an imported spring, which can move up and down, and is light and flexible.

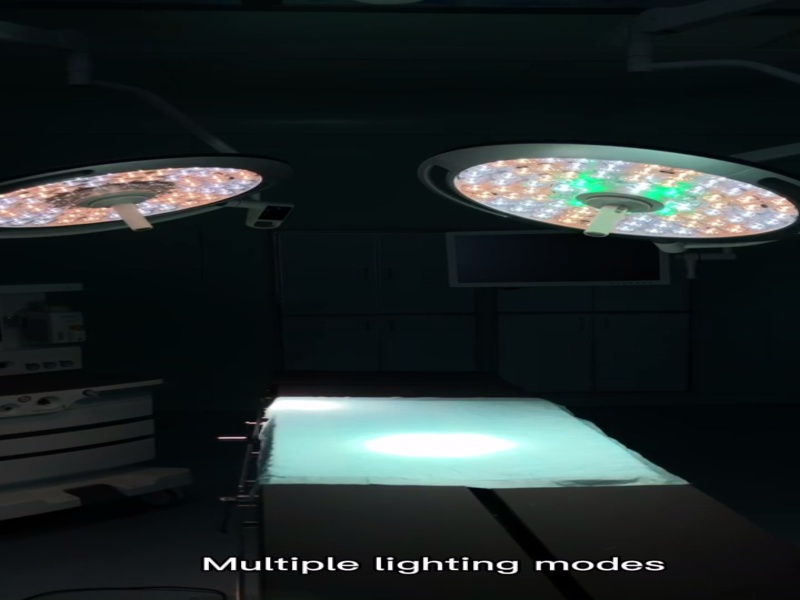

The color temperature is adjustable, and the human R9 function and the green light mode are controllable.
With minimally invasive lighting function.
Illumination and shadow automatic compensation mode.
Electric adjustment of the spot diameter of the lighting equipment.
|
Technical Parameter |
Model No: |
|
CM601-002 |
|
|
Ambient temperture |
5℃~40℃ |
|
Relative humidity |
≤80% |
|
Atmospheric pressure |
860hpa~1060hpa |
|
Power voltage |
220V±22V 50Hz±1Hz |
|
Input power |
400VA |
|
Illumination |
160，000lx≥Ec≥80，000lx |
|
Color temperature |
6700≥Tc≥3000 |
|
Total Illumination |
≤1000w/m2 |
|
Total Illumination/ Illumination |
≤6mW/m2lx |
|
Light spot diameter |
270mm±60mm d50：150mm±35mm |
|
Input power(VA) |
150 |
|
Depth of light beam |
≥700mm |
|
Color rendering index |
100≥Ra≥85 |
|
Notice |
50% of the center illumination light region diameter d50 should not be less than 50% of the spot diameter d10
|
|
Items |
Units |
Qty. |
|
Fixed plate |
Pc |
1 |
|
Rotation body |
Pc |
1 |
|
Balance arm |
Pc |
2 |
|
Lamp holder |
Pc |
2 |
|
Sterilized handle |
Pc |
2 |
|
Shield of fixed plate |
Pc |
1 |
|
Power switch |
Pc |
2 |
|
8mm inner hexagon spanner |
Pc |
1 |
|
5mm inner hexagon spanner |
Pc |
1 |
|
3mm inner hexagon spanner |
Pc |
1 |
|
Cross bottle opener |
Pc |
1 |
|
φ4 regulatingrod |
Pc |
1 |
|
Instruction manual |
Copy |
1 |
|
Warranty card |
Copy |
1 |
|
Quality certificate |
Copy |
1 |
