CM604-001 MANUAL MEDICAL PENDANT



NAME: MANUAL MEDICAL PENDANT



MODEL: CM604-001



MOQ:1

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
DESCRIPION:

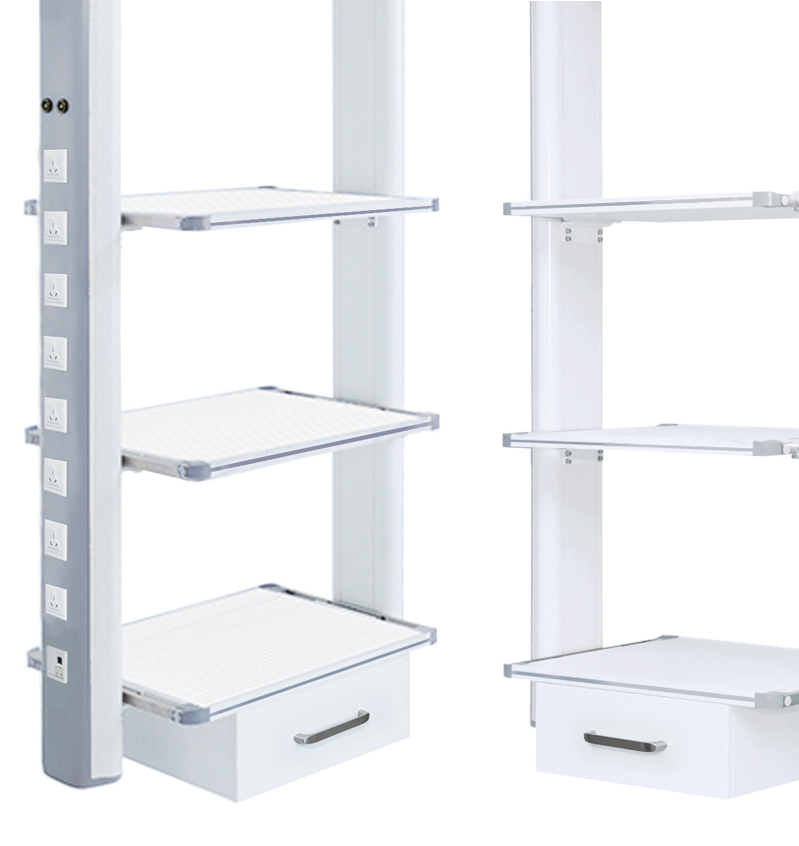

CM604-0001medical pendant is an indispensable medical auxiliary equipment in the modern clean operating room, general operating room, and ICU intensive care units. Various medical gases, strong and weak electricity and network output terminals are integrated into the console. The platform and drawer can hold a certain weight of medical equipment

The cross arm of the pendant tower and the control box adopt patented technology, imported high-strength aluminum alloy is formed by one-time extrusion, and the surface is first-level oxidation treatment.

The aluminum alloy one-time forming tray has a light-stripe non-slip function.

Mechanical friction damping brakes.

The gas pipeline, power supply, and computer communication line are separated and arranged without interference.

Adopt German standard gas terminal (plugging and unplugging more than 20,000 times).

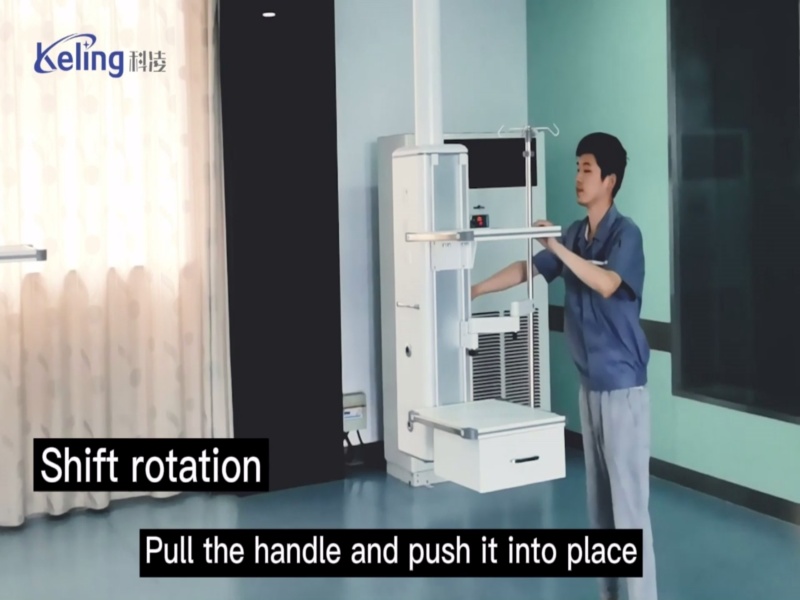

With horizontal rotation function, precise positioning without drift.



SPECIFICATIONS:

Technical Parameter

Model No:

CM604-001

Mechanical parameters

Loading of Capacity

Ordinary control console with no drawer:        Maximum 35Kg

Ordinary control console with single drawer:     Maximum 40Kg

Power supply voltage

AC220V±10V

Power supply frequency

50Hz±1Hz

Ambient temperature

10℃40℃

Atmosphere pressure

500hpa1060hpa

Notice

It’s prohibited to use this product in the mixture of the combustible aesthetic gas and air or oxygen or nitrogen oxide.

It can be applied in the environment with explosion danger.

PACKING LIST:

Number

Name

Unit

Quantity

1

Main Part

PC

1

2

Cover and Accessories

PC

1

3

Instructions

PC

1

4

Maintenance Card

PC

1

5

Qualified Certificate

PC

1
