CM604-002 MANUAL MEDICAL PENDANT
NAME: MANUAL MEDICAL PENDANT
MODEL: CM604-002
MOQ:1
CM604-002 type medical pendant is a necessary medical auxiliary equipment for modern clean operating rooms and general operating rooms. The platform can place a certain weight on medical instruments. All kinds of medical gases, strong and weak electricity, and network output terminals are integrated into the console
The cross arm of the pendant tower and the control box adopt patented technology, imported high-strength aluminum alloy is formed by one-time extrusion, and the surface is first-level oxidation treatment.
The aluminum alloy one-time forming tray has a light-stripe non-slip function.
Mechanical friction damping brakes.
The gas pipeline, power supply, and computer communication line are separated and arranged without interference.
Adopt German standard gas terminal (plugging and unplugging more than 20,000 times).

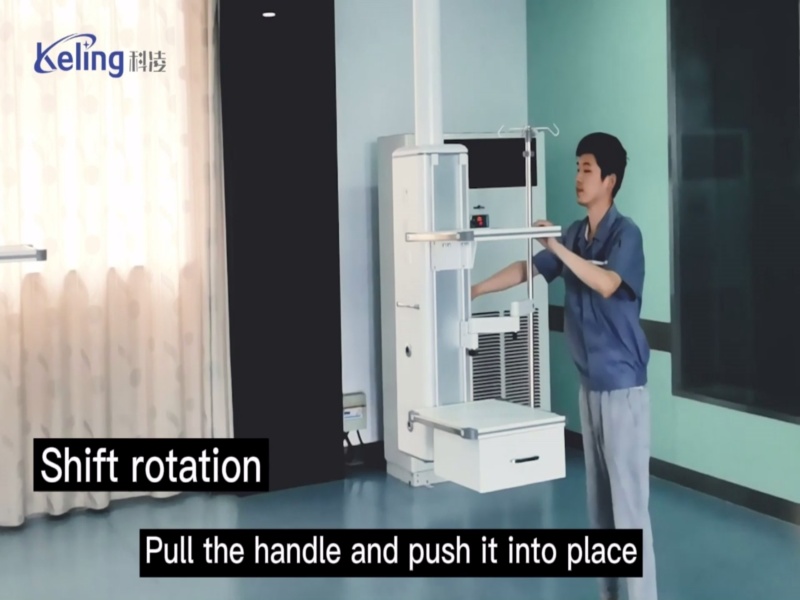

With horizontal rotation function, precise positioning without drift.
|
Technical Parameter |
Model No: |
|
CM604-002 |
|
|
Mechanical parameters （Loading of Capacity） |
Ordinary control console with no drawer: Maximum 35Kg Ordinary control console with single drawer: Maximum 40Kg |
|
Power supply voltage |
AC220V±10V |
|
Power supply frequency |
50Hz±1Hz |
|
Ambient temperature |
10℃～40℃ |
|
Atmosphere pressure |
500hpa～1060hpa |
|
Notice |
It’s prohibited to use this product in a mixture of combustible anesthetic gas and air or oxygen or nitrogen oxide. It can be applied in an environment with explosion danger. |
|
Number |
Name |
Unit |
Quantity |
|
1 |
Main Part |
PC |
1 |
|
2 |
Cover and Accessories |
PC |
1 |
|
3 |
Instructions |
PC |
1 |
|
4 |
Maintenance Card |
PC |
1 |
|
5 |
Qualified Certificate |
PC |
1 |
