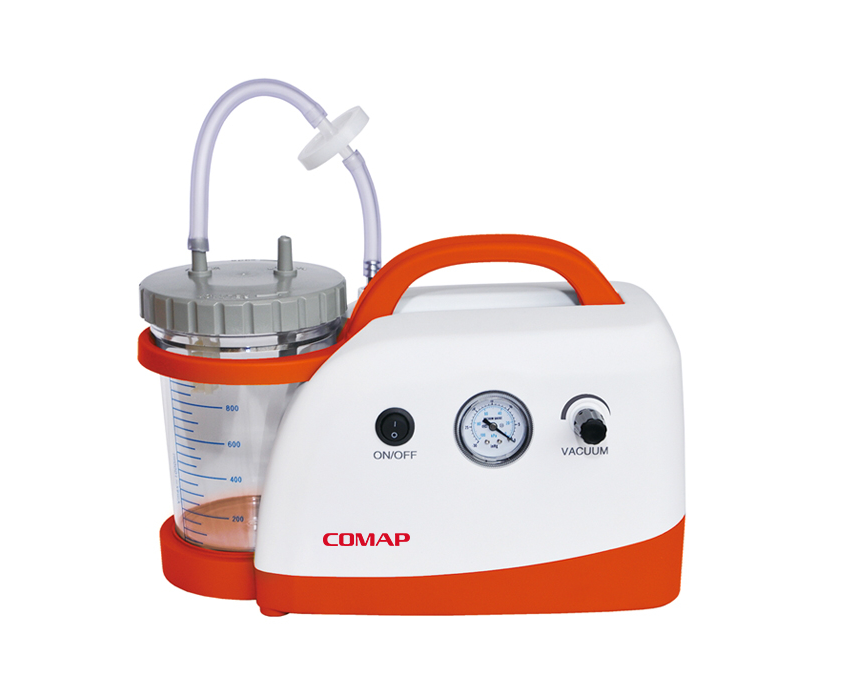

CM607-001 ELECTRIC SUCTION MACHINE
NAME:ELECTRIC SUCTION MACHINE
MODEL:CM607-001
PACKING SIZE (mm³):395*245*270
GW(kg):3.2
MOQ:10
CM607-001 Portable suction apparatus for emergency adopts AC, external DC and interior batteries for power supply. It can be used for suctioning secretion, blood and other substances that cause blocking in respiratory tract as well as suctioning for other purposes. It is especially fit for outdoor first aid, ambulance and circumstances where there is no power supply or there is power failure, in which circumstances, the AC/DC will switch automatically to ensure normal service of the apparatus.
Safety class: Class I type B
|
Technical Parameter |
Model No: |
|
CM607-001 |
|
|
Negative pressure |
≤-0.09Mpa（680mmHg） |
|
Air pumping efficiency |
≥20L/min |
|
Capacity of liquid vessel |
1000ml |
|
Range of negative pressure regulation |
-0.013MPa～-0.09Mpa(680mmHg) |
|
Power supply |
AC220V±10％ 50/60Hz |
|
Input power |
150VA |
|
Pump structure |
oil-free self-lubricated pump |
|
Work mode |
intermittent load continuous operation |
|
No. |
Items & Specifications |
Unit |
Quantity |
|
1 |
Transparent silicon rubber pipeφ7×11 |
Pc. |
1 |
|
2 |
Sputum suction pipe |
Pc. |
1 |
|
3 |
Fuse tubeφ5×20/2A |
Pc. |
3 |
|
4 |
Fuse tube φ5×20/8A |
Pc. |
2 |
|
5 |
Fuse tube φ6×30/10A |
Pc. |
1 |
|
6 |
Power plug wire AC220V |
Pc. |
1 |
|
7 |
Vehicle cigar lighter plug wire DC12V |
Pc. |
1 |
|
8 |
Service manual, warranty card |
Copy |
1 |
