CM607-005 ELECTRIC SUCTION MACHINE
NAME: ELECTRIC SUCTION MACHINE
MODEL: CM607-005
PACKING SIZE (mm³):415*405*895
GW(kg):21
MOQ:10

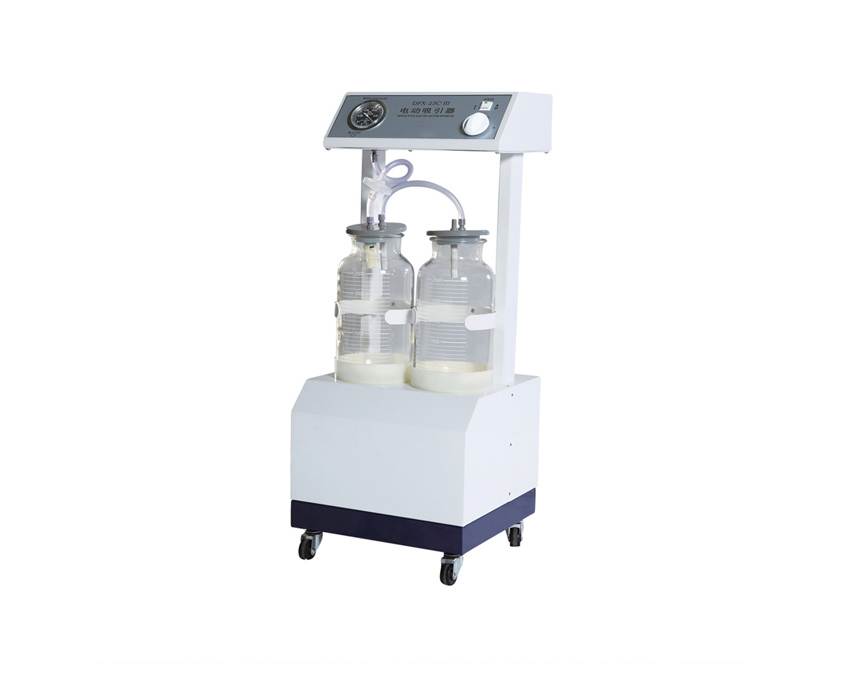

CM607-005 Electric Suction Apparatus is a movable suction pump suitable for the surgical room. This apparatus is applied for the suction of gore and other secretion in the human body.
Self-lubricate pump for large flux and high performance without pollution. This pump is of single way structure, without positive pressure
Flooding protection equipment was applied to the suction bottle.
Filter bottles to decrease ambient air pollution
Electric control panel and pedal control switch parallel connected for choice in usage.
Safe Type: Type B in fieldⅠ
|
Technical Parameter |
Model No: |
|
CM607-005 |
|
|
Power voltage |
AC 220V±10% 50/60Hz |
|
Negative pressure |
≥0.09MPa |
|
Suction rate |
≥20L/min |
|
Negative pressure regulating range |
0.013 ~ 0.09MPa |
|
Suction bottle |
2500ml x 2 |
|
Noise |
≤55dB |
|
Input power |
150VA |
|
Pump structure |
self-lubrication without oil |
|
Working type |
intermission |
|
Items |
Units |
Qty. |
|
Abdominal cavity suction tube |
Pc |
1 |
|
Suction tube |
Pc |
1 |
|
Fuse tube φ5x20/5A RF1 |
Pc |
2 |
|
Pedal switch |
Pc |
1 |
