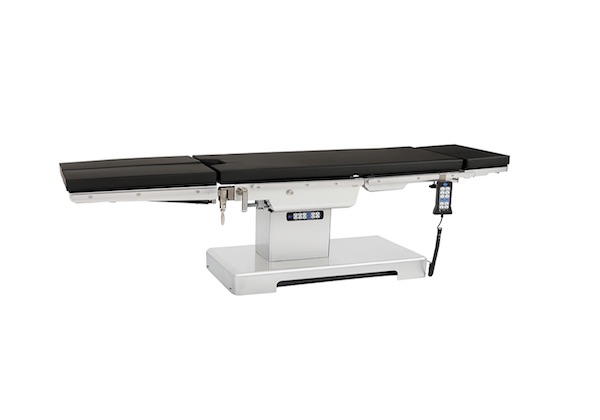

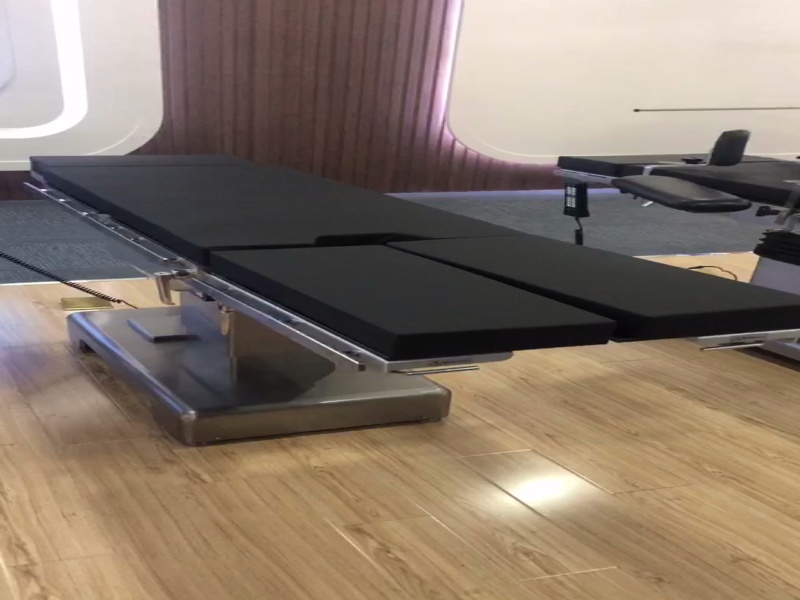

CM602-001 ELECTRIC OPERATING TABLE
NAME: ELECTRIC OPERATING TABLE
MODEL: CM602-001
PACKING SIZE (mm³):1450×800×1050
GW(kg):320
MOQ:1
CM602-001 electric operating table is suitable for various operations in medical units.
The bed surface is made of a high-quality carbon plastic board, and the table surface can be moved longitudinally, which can meet the needs of C-arm whole body inspection and filming.
The mattress is wrapped in imported artificial leather, and high-density memory foam is formed at one time without any gaps.
It adopts an electro-hydraulic working principle, controls various actions through remote control and panel, and has a self-locking function.
The hydraulic system adopts an imported brand from Germany HOERBIGER.
AC and DC dual-purpose, CPU control, with one-key reset function.
With one key to forming"∧" shape and "∨" shape, which is convenient for operation.
Imported sealing ring, durable.
The table support frame is made of die-casting aluminum alloy, which will never rust.
The base and rails on both sides are made of 304 stainless steel.
The electric brake device facilitates the displacement of the operating table.
The leg plate is the split-leg type and is controlled by an imported gas spring.
|
Technical Parameter |
Model No: |
|
CM602-001 |
|
|
Length of bed face-board |
2000±50mm |
|
Width of bed face-board |
500±20mm |
|
Minimum height of bed face-board |
770±30mm |
|
Maximum height of bed face-board |
1200±30mm |
|
Forward tilting angle of bed face-board |
≥30° |
|
Backward tilting angle of bed face-board |
≥30° |
|
Leftward tilting angle of bed face-board |
≥25° |
|
Rightward tilting angle of bed face-board |
≥25° |
|
Upward folding angle of back-board |
≥70° |
|
Downward folding angle of back-board |
≥45° |
|
Downward folding angle of leg-board |
≥90° |
|
Vertical and horizontal displacement of bed face-board |
≥350mm |
|
Elevation of waist-board |
≥70mm |
|
Power supply voltage |
≥AC220V±10％ |
|
Power supply frequency |
50Hz |
|
Input power |
400VA |
This product is composed of base, arm-boards, leg-boards, back-board and head-board etc, and is equipped with necessary attachments .
|
No. |
Description |
Quantity |
|
1 |
Screen for anaesthesia |
1 set |
|
2 |
Shoulder support |
2 pieces |
|
3 |
Hand support |
1 piece |
|
4 |
Body support (long) |
1 piece |
|
5 |
Body support(short) |
2 sets |
|
6 |
Leg support |
2 pieces |
|
7 |
Sliding block |
2 pieces |
|
8 |
Bed pad |
1 set |
