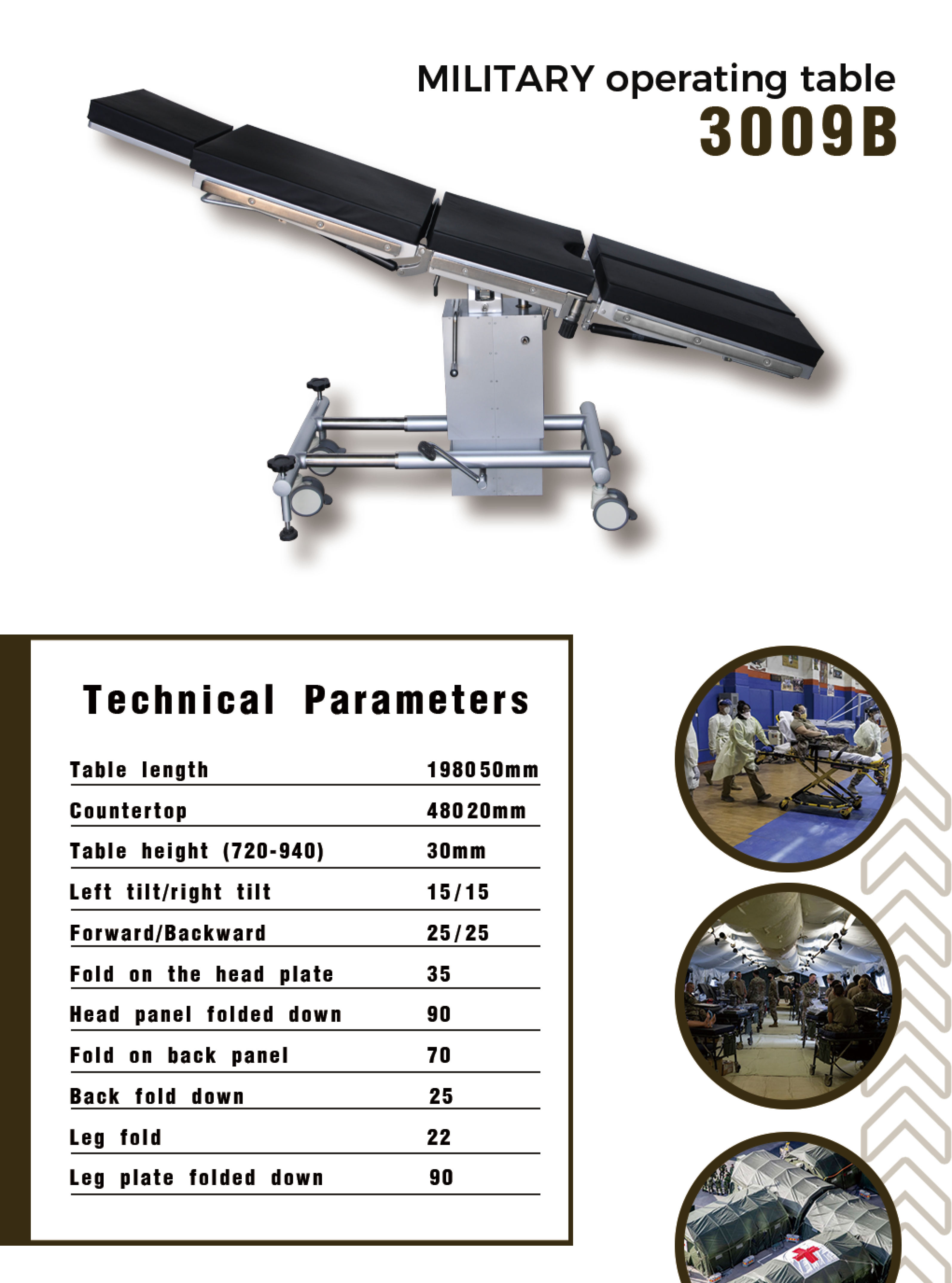

Table length 1980±50mm
Countertop 480±20mm
Table height (720-940) ± 30mm
Left tilt/right tilt ≥15°/≥15°
Forward/Backward ≥25°/≥25°
Fold on the head plate ≥35°
Head panel folded down ≥90°
Fold on back panel ≥70°
Back fold down ≥25°
Leg fold ≥22°
Leg plate folded down ≥90°
Main body weight ≤90kg
Attachment weight ≤14kg
Package size (length*width*height) 1200*640*890

A pair of shoulder support/waist support, a pair of arm support, a pair of leg support, a pair of screen frame

Use hydraulic pneumatic and mechanical transmission to control various actions
Imported Y-shaped sealing ring, durable
The rails on both sides of the bed are made of 304 stainless steel
The base and support frame are pressed with gold and aluminum film, which will never rust
The mattress is made of imported artificial leather-wrapped with high-density memory foam, which is formed at one time without gaps
Ultra-light, easy to transport, suitable for military field operations and various emergency operations
Ultra-quiet large casters for easy displacement of the operating table
