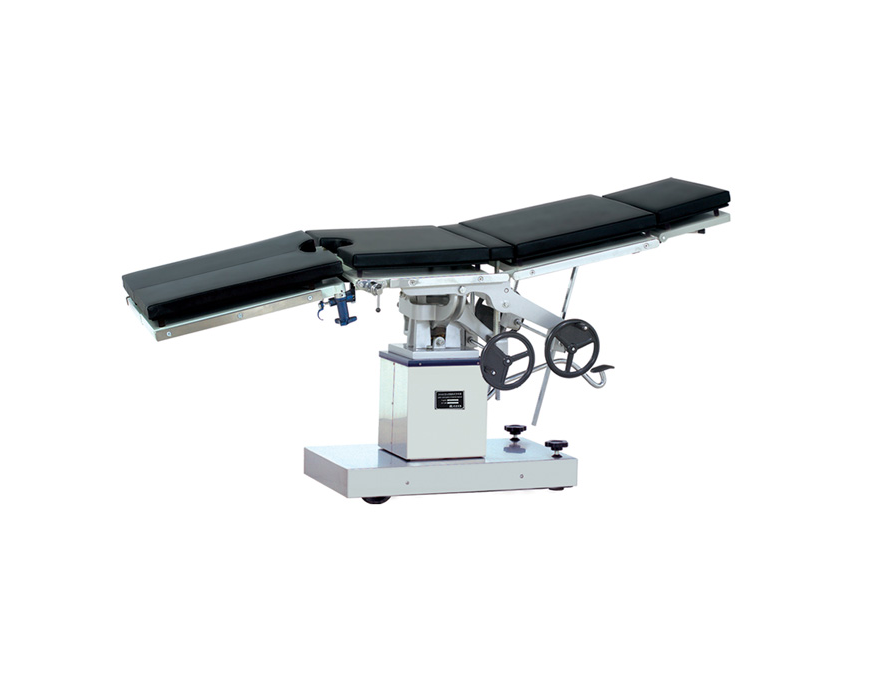

NAME: MULTI-PURPOSE OPERATION TABLE SIDE-CONTROLLED
MODEL: CM602-005
PACKING SIZE (mm³):1240×720×1040
GW(kg):280
MOQ:1
The controlling devices, hand wheels, and crank handles are mounted on both sides of the table and can be controlled from either side
1. Hand Wheel(B)and Hand Wheel(H)are mounted on the left side and the right side of the table for adjusting the back section and the seat section respectively from either side of the table.
2. On the right side of the table, Crank Handle (G)is used for lateral tilt in the left or right direction, and Crank Handle (A)is employed for adjustment of the kidney bridge.
3. Crank Handle (F)located on the right side of the table, is used to control Trendelenburg and reversed Trendelenburg positions. It is detachable and can be mounted on the left side.
4. Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil in the oil pump has been pumped into the pail, so the oil pump can not ascend. The consumers must loosen the cover of the filling aperture at the top of the oil pump and try to use the oil in the pail to refill the oil pump through the filling aperture slowly. By pressing down Pedal(C)repeatedly, the table top will elevate and stop automatically when the maximum height is reached. When the pedal is pressed down to its limit, the tabletop will begin to descend slowly and gently.
5. The base of the table is mounted on ball-bearing castors and controlled by the floor brake so that the table can be freely moved or stabilized at any desired position. When Pedal(E)is pressed down gently, the table can be pushed easily, and when the same pedal is pressed down again, the base will be set stably on the floor.
|
Technical Parameter |
Model No: |
|
CM602-005 |
|
|
Dimensions of Sections |
Overall length 2100±50㎜ Width 480±20㎜ |
|
Dimensions of Sections |
Head Rest 280×380㎜ Back Section 500×480㎜ Kidney Bridge 85×470㎜ Seat Section 450×480㎜ Leg Section 500×480㎜ Foot Rest 200×535㎜ |
|
Table Top from Floor |
(750—950)㎜±50㎜ |
|
Range of Movements |
Head Rest-raised from the horizontal 45° Lowered from the horizontal 90° Back Section –raised from the horizontal 75° Lowered fron the horizontal 18° Waist Bridge Elevation 120mm Leg Section-lowered from the horizontal 90° |
|
Foot Rest |
can be kept horizontally or perpendicularly to the Leg Section |
|
No |
DESCTIPTIONS |
QUANTITY |
|
1 |
BED BODY |
1set |
|
2 |
ANESTHETIC SCTEEN |
1piece |
|
3 |
SHOULDER REST |
2 pieces |
|
4 |
BODY REST |
2 pieces |
|
5 |
ARMREST |
2 pieces |
|
6 |
KNEE CURTCH |
2 pieces |
|
7 |
CUSHION |
1 piece |
|
8 |
OIL POT(WITH OIL) |
1 piece |
|
9 |
INSTRUTION MANUAL |
1 piece |
