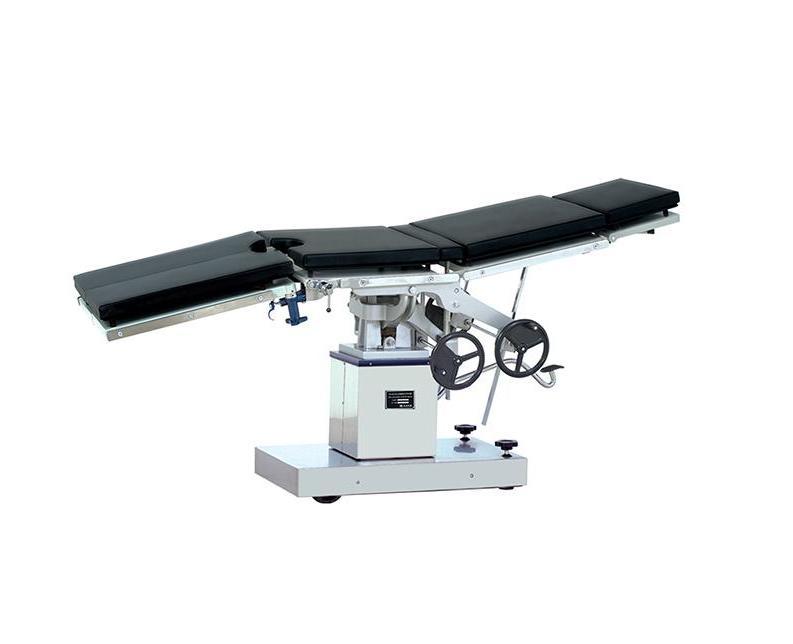

CM602-008 Mechanical Operating Table
NAME: Mechanical Operating Table
MODEL: CM602-008
PACKING SIZE (mm³):1160×720×1000
GW(kg):280
MOQ:1
The operating table is a comprehensive multi-function type, suitable for medical units to perform various operations, all actions are controlled on both sides.
The imported Y-shaped sealing ring has good sealing performance and is durable.
Equipped with a brake device to facilitate the displacement of the operating table.
All actions are manipulated on both sides.
One set of shoulder support/waist support, one arm support, one leg support, and one screen support.
|
Dimensions of Tabletop: |
Overall length 2100±50㎜ |
|
|
Width 480±20㎜ |
|
Dimensions of Sections: |
Head Rest 280×380㎜ |
|
|
Back Section 500×480㎜ |
|
|
Kidney Bridge 85×470㎜ |
|
|
Seat Section 450×480㎜ |
|
|
Leg Section 500×480㎜ |
|
|
Foot Rest 200×535㎜ |
|
Table Top from Floor: |
（750—950）㎜±50㎜ |
|
Range of Movements: |
Max. Reversed Trdndelenburg 30° |
|
|
Max. Trendelenburg 20° |
|
|
Max. Lateral Tilt 18° |
|
Adjustments of section: |
Head Rest-raised from the horizontal 45° |
|
|
Lowered from the horizontal 90° |
|
|
Back Section–raised from the horizontal 75° |
|
|
Lowered from the horizontal 18° |
|
|
Waist Bridge Elevation 120mm |
|
|
Leg Section-lowered from the horizontal 90° |
|
|
Foot Rest-can be kept horizontally or perpendicularly to the Leg Section |
|
No |
DESCRIPTIONS |
QUANTITY |
|
1 |
BED BODY |
1set |
|
2 |
ANESTHETIC SCREEN |
1piece |
|
3 |
SHOULDER REST |
2 pieces |
|
4 |
BODY REST |
2 pieces |
|
5 |
ARMREST |
2 pieces |
|
6 |
KNEE CRUTCH |
2 pieces |
|
7 |
CUSHION |
1 piece |
|
8 |
OIL POT（WITH OIL） |
1 piece |
|
9 |
INSTRUCTION MANUAL |
1 piece |
