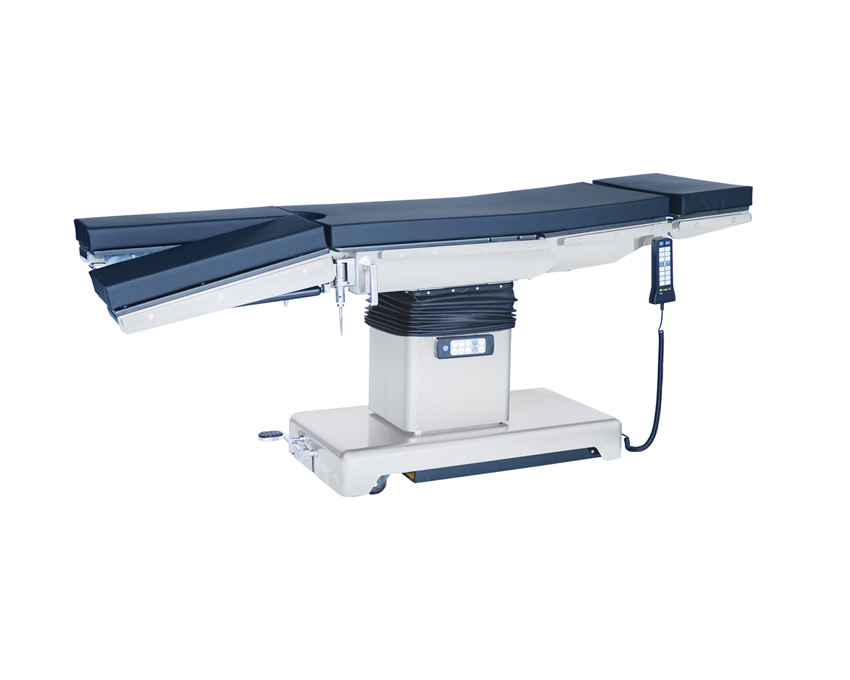

CM602-002 ELECTRIC OPERATING TABLE
NAME: ELECTRIC OPERATING TABLE
MODEL: CM602-002
PACKING SIZE (mm³):1570×770×1070
GW(kg): 280
MOQ:1
CM602-002 electric operating table is comprehensive and multi-functional, which can meet the needs of various operations.
The bed surface is made of a high-quality carbon plastic board, which can meet the requirements of X-ray photography.
AC and DC dual purpose, dual remote controllers control various actions.
The base, countertop support frame, and rails on both sides are made of 304 stainless steel.
The mattress is made of imported artificial leather-wrapped with high-density memory foam and formed at one time without any gaps.
Imported brand LINAK motor, no noise, long service life.
Foot brake device, convenient for the movement of the operating table.
The head plate and leg plates are controlled by imported gas springs, and the leg plates are split and detachable.
The operating table has a one-key reset function.
It has a key to form a "^" shape and a "v" shape, which is convenient for operation.
|
Technical Parameter |
Model No: |
|
CM602-002 |
|
|
Overall Length |
2000±50mm |
|
Overall Width |
480±20mm |
|
Table top |
（750-1000）±50mm |
|
Table lowest |
750mm |
|
Head Section Raised from the horizontal |
≥40 |
|
Head Section lowered from the horizontal |
≥90° |
|
Leg Section Lowered from the horizontal |
≥90° |
|
Leg Section opened |
≥90° |
|
Waist board lifting |
≥100mm |
|
Back Section Raised from the horizontal |
≥45° |
|
Back Section lowered from the horizontal |
≥20° |
|
Mains voltage |
AC 220V |
|
Frequency |
50Hz |
|
No. |
Names |
Unit |
Quantity |
|
1 |
Main machine |
Set |
1 |
|
2 |
Screen support |
Set |
1 |
|
3 |
Shoulder support (with underlay) |
Piece |
2 |
|
4 |
Arm rest support (with underlay) |
Piece |
2 |
|
5 |
Body support (with underlay) |
Piece |
Long and short each |
|
6 |
Leg support (with underlay) |
Piece |
2 |
|
7 |
Foot board (with underlay) |
Piece |
1 |
|
8 |
Hand-control switch |
Piece |
1 |
|
9 |
Power cord |
Piece |
1 |
|
10 |
Fuse |
Piece |
2 |
|
11 |
Instruction manual |
Copy |
1 |
|
12 |
Warranty card |
Copy |
1 |
|
13 |
QA pass |
Copy |
1 |
