CM602-003 MULTI-FUNCTIONAL OPERATION TABLE
NAME: MULTI-FUNCTIONAL OPERATION TABLE
MODEL:CM602-003
PACKING SIZE (mm³):1220×660×960
GW(kg):288
MOQ:1

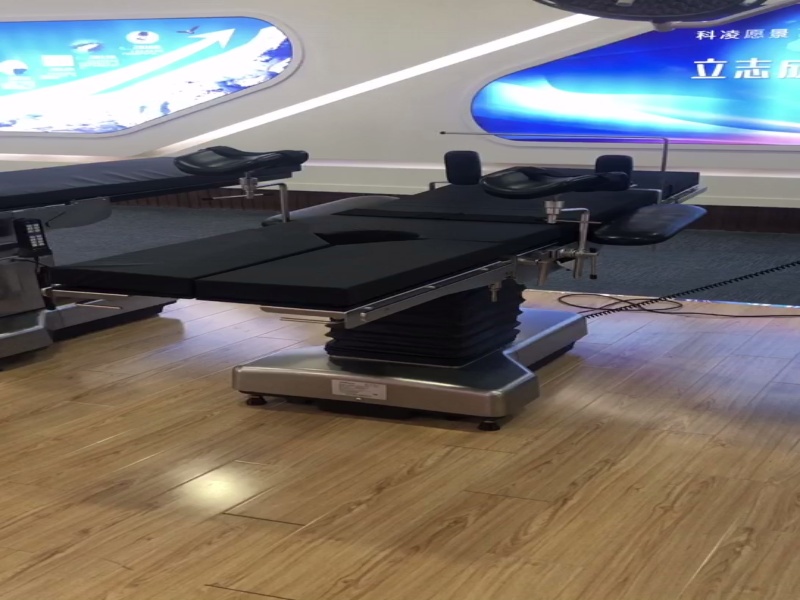

CM602-003 surgical operating table for the head region is mainly intended for the general surgical operations for check and abdomen, eyes, nose and throat, obstetrics and gynecology, and urology.
This product adopts the foot-stepping hydraulic pressure pump which combines an oil-saving pump tank with a driving machine, threadlike pole drive, and air vat so as to control variable movements on the table. The headboard and the leg board can be exchanged to put to connect, photography and diagnosis by the C-arm X-ray during operations. It provides convenient operation, reliable orientation, compact and reasonable structure, novel sculpt, etc.
|
Technical Parameter |
Model No: |
|
CM602-003 |
|
|
Table size |
Length: 2000mm Width: 500mm |
|
|
Height(max): >1000mm Elevation range: ≥300mm |
|
|
Height(min): >700mm |
|
Table |
Inclining forward≥20° Inclining backward≥20° |
|
|
Inclining leftward≥15° Inclining rightward≥15° |
|
Back board |
Folding upward≥65° |
|
Head board |
Folding upward≥90° Folding downward≥90° |
|
Leg board |
Folding downward≥90° |
|
Table rated load capacity |
135KG |
|
No. |
Items |
Units |
Quantities |
|
1 |
Major table |
Set |
1 |
|
2 |
Band holder frame |
Set |
1 |
|
3 |
Single-level arm resting bracket |
Pc. |
2 |
|
4 |
Leg bracket |
Pc. |
2 |
|
5 |
Weight bearing bracket |
Pc. |
2 |
|
6 |
Anesthesia bracket |
Pc. |
1 |
|
7 |

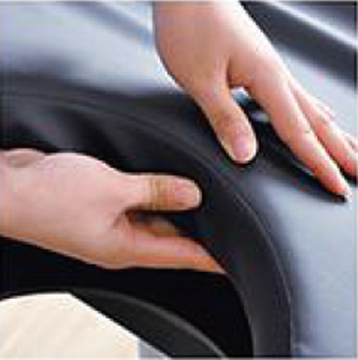

Soft cushion |
Set |
1 |
|
8 |
Instruction manual and warranty card |
Set |
1 |
|
9 |
Quality certificate |
Copy |
1 |
